Sound Healing / Cymatics Visualiser
cymaheal
See the figure your sound draws.

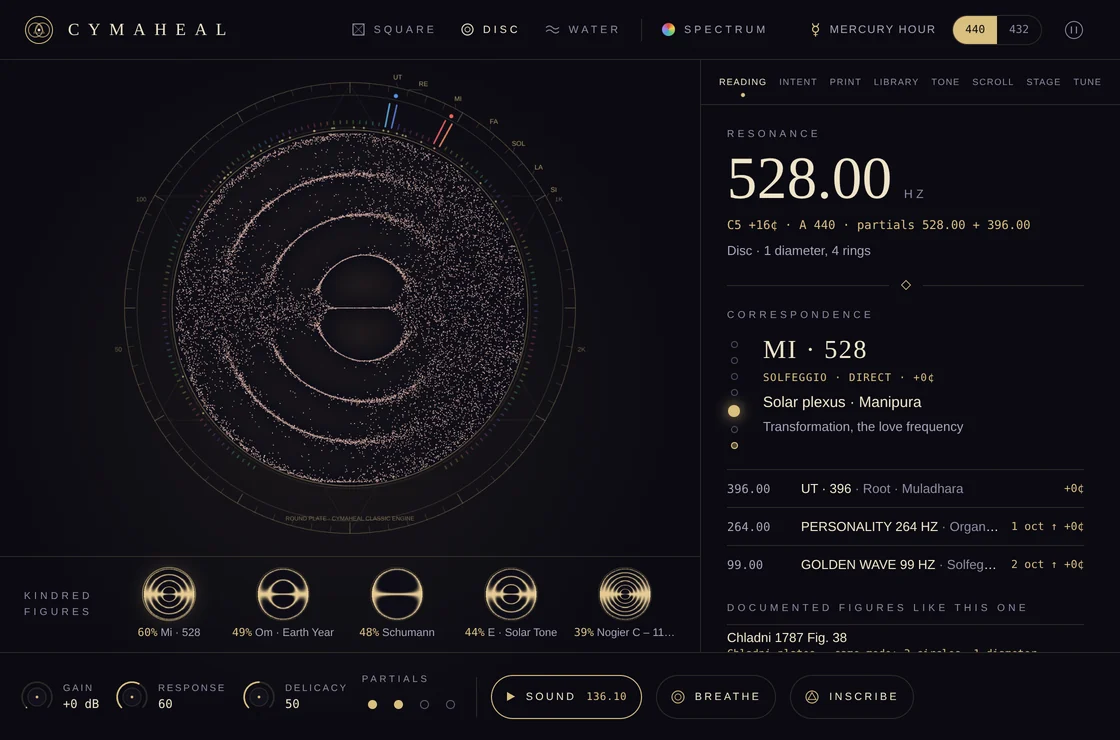

Put it on any track or the master and watch the cymatic figure your music draws on a plate, a disc or water. It names the tone it lands on and matches it against 1,266 researched records.
22 €VAT included
Key features
- Square plate, round plate and water, drawn live from your audio
- Follows the melody, not the kick, on a full mix
- Names every tone: frequency, note, cents and the matching record
- Library of 1,266 records: figures, frequencies and images, each with its source
- Healing tones, breath guide and the planetary hour
- Pop-out window, Syphon out and QuickTime recording for live shows and video
What is cymaheal?
cymaheal is a cymatics visualiser and sound healing plug-in for macOS (VST3, AU and Standalone) made by Sacred Audio. Put it on any track or the master and watch the cymatic figure your music draws on a plate, a disc or water. It names the tone it lands on and matches it against 1,266 researched records. It costs 22 € including VAT and runs free for 14 days, and is part of the Temple bundle (all four plug-ins for 77 €).
Sound has always drawn figures: sand on a bowed plate, ripples on water. cymaheal draws them for your music, live, while the audio passes through untouched.
It listens the way the ear does, follows the melody instead of the kick, and tells you what each tone is: the note, the Solfeggio or chakra record it matches, and the figures that share it. Send the visuals to a projector or record them as a movie.
Three media
Watch the figure on a square plate, a disc or a water surface. Tuning, Partials, Response and Delicacy shape how detailed and lively it is.
Readings with meaning
Every reading shows frequency, note and the matching Solfeggio, chakra or Cosmic Octave record with its body point. The library holds 1,266 records, each with its source.
Healing tones and breath
Sound a pure, binaural or pulsed tone from 20 to 2000 Hz into the track, with a beat from 0.5 to 40 Hz. The breath guide swells and settles the ring around the plate at 3 to 12 breaths a minute.
Planetary hours
See the planetary day and hour for your location, counted from your sunrise and sunset in the Chaldean order. Sound the hour plays the Cosmic Octave tone of the current hour's planet.
Prints and scrolls
Fingerprint a whole song and save it as a picture card and data file. A session scroll writes down every figure that holds for a few breaths.
Stage, Syphon and video
Open the figure in its own window for a projector, send it to Syphon, or record QuickTime movies that start and stop with your song. Export Seven planets, Cosmic Octave, Solfeggio, OM just and A = 432 tunings for Live 12 and Scala.
In the studio
Leave cymaheal on the master while you mix and watch which figures your leads, kicks and pads draw. Fingerprint a finished track and compare it with your earlier ones. For live sets, Beat Stage and Bar Stage change the figure on the beat or the bar and pulse with the tempo, ready for a projector or Syphon into Resolume or OBS. Arm recording, press Play, and each playback becomes a video for your release.
In the healing room
Run your microphone through cymaheal and let clients see the figure each bowl, fork, gong or voice draws. Sound a Solfeggio or Cosmic Octave tone from the Tone tab, breathe together with the breath guide, or sound the tone of the current planetary hour. Begin a session and the scroll keeps a record of every lasting figure, which you can save and share. Open the visuals window on a second screen for the whole room.
How it's built
The modelling, the research and the choices behind cymaheal.
Are the figures real physics?
cymaheal has two figure engines. The Classic engine, the one you see, draws the textbook figures: the classic cos·cos approximation for the square plate, membrane modes for the round plate, and breathing mandalas for water. They are stylised on purpose, because they read clearly at a glance and follow the music smoothly.
Under it we built a physical engine that solves free glass plates with Kirchhoff plate theory and an 80 mm water dish with the real capillary-gravity waves. We use it to check and tune the figures.
What is the physics checked against?
The square plate, solved with the Rayleigh–Ritz method, reproduces the eigenvalues in Leissa's Vibration of Plates (NASA SP-160) exactly: 13.468, 19.596, 24.270, 34.801. The disc is within 0.3 %.
Against Chladni's own tone tables from 1787, all 31 square-plate tones land on the right mode, with a median error of 28 cents, and disc figures 22–66 have a median error of 31 cents. The best-fitting material is glass (Poisson ratio 0.22), which is what Chladni used. One question is still open: his figures 2–20 sit an octave and about 60 cents away from the rest, probably a second plate or a slip in transcription.
How does it follow the melody instead of the kick?
Since version 2.9.5 the spectrum is weighted the way the ear hears it (A-weighting), and only clearly pitched peaks, at least 9 dB above their surroundings, steer the plate. Kick thumps and hi-hat noise are ignored. On a test mix of kick, rolling bass, lead and hats, the plate follows the lead note by note: 440, 523, 659, 587 Hz, four different figures.
Where do the 1,266 library records come from?
Every record carries its source title and link: Chladni 1787 and 1817, Wheatstone 1833, Faraday 1831, Hans Jenny, Alexander Lauterwasser, Margaret Watts Hughes, CymaScope and more. Each is labelled as measured or as tradition. Claims such as Rife frequencies are kept as history, not as fact.
13 factory presets
Plates
- Bronze Disc
- Chladni Square
- Fine Sand
Water
- Water Mirror
- Chakra Water
Stage
- Beat Stage
- Bar Stage
Healing tones
- OM 136.1 Pure
- Solfeggio 528
- Heart 639 Breath
- Theta OM Binaural
- Delta Rest 174
- Schumann Pulse
Save your own, share them as files, or import packs. Presets never change your output level.
Details
| Category | Sound Healing: Cymatics Visualiser |
|---|---|
| Formats | VST3, AU, Standalone |
| Type | Audio effect / visualiser |
| Channels | Mono or stereo, pass-through |
| macOS | macOS 11 or later, Apple Silicon and Intel |
| Windows | Coming soon |
| Version | 2.9.5 |
| Outputs | Visuals window, Syphon, QuickTime movie (H.264 + AAC) |
| Factory presets | 13 in four groups |
cymaheal uses moving visual patterns and healing tones. Please read the health and safety notice before use. It's a creative and relaxation tool, not a medical device.
What owners say
No reviews yet.
Only people who own cymaheal can review it; we check the licence. Every review is shown unless it is spam or abuse. Nobody is paid or rewarded for a review.
Questions about cymaheal
What is cymaheal?
cymaheal is a cymatics visualiser and sound healing plug-in for macOS (VST3, AU and Standalone) made by Sacred Audio. Put it on any track or the master and watch the cymatic figure your music draws on a plate, a disc or water. It names the tone it lands on and matches it against 1,266 researched records. It costs 22 € including VAT and runs free for 14 days, and is part of the Temple bundle (all four plug-ins for 77 €).
Does cymaheal work in Ableton Live, Logic Pro and FL Studio?
Yes. cymaheal is a VST3 and Audio Unit plug-in, so it works in Ableton Live, Logic Pro, FL Studio, Bitwig Studio, Cubase, Reaper, Studio One and other macOS hosts that load VST3 or AU. It also runs as a standalone app without a DAW.
Is there a free trial of cymaheal?
Yes. cymaheal runs fully for 14 days from the first time you open it. Create a free account to download it. After the trial it keeps working, but the sound dips to silence for a few seconds every minute until you enter a licence key.
How much does cymaheal cost?
22 € including VAT, a one-time purchase with no subscription. It is also part of the Temple bundle: all four Sacred Audio plug-ins for 77 €.
Does cymaheal change my sound?
No. cymaheal passes audio through unchanged and only draws the figure. Its Sound button can add a healing tone of its own.
Can I record the cymatics visuals?
Yes. cymaheal records the visuals as a QuickTime movie (H.264 with AAC audio) and can send them live to VJ software over Syphon.
Does cymaheal run on Windows?
Not yet. The plug-ins run on macOS 11 or later, on Apple Silicon and Intel Macs. Windows versions are coming.
